Chromalox Band Heaters

Features

  • Efficient heat transfer
  • Long-term durability
  • Heavy duty stainless steel anti-torque post terminals
  • Reliable perfomance and quick temperature response
  • Available in special configurations
  • Easy installation
  • Suitable for extremely high temperature applications

Summary

Thermal Devices is an authorized Distributer of Chromalox advanced thermal technology products. Chromalox manufacturers the industry’s most comprehensive product suite of industrial band heaters. From small size Nozzle Band heaters to the robust, high temperature HBT Tubular Heating Element band. Thermal Devices has the right Band Heater solution for any cylindrical heating application. Contact a Thermal Devices’ Sales Engineer for more information! Or, request a quote

Product Description

Thermal Devices is an authorized Distributer of Chromalox advanced thermal technology products. Chromalox manufacturers the industry’s most comprehensive product suite of industrial band heaters. From small size Nozzle Band heaters to the robust, high temperature HBT Tubular Heating Element band. Thermal Devices has the right Band Heater solution for any cylindrical heating application.

Chromalox Band Heaters can be used in  applications such as: autoclaves, extrusion barrels, heat treating pipes, blow molding, and plastics machinery. Thermal Devices offers the following Chromalox Band Heaters:

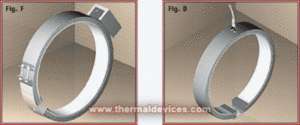

Mica Band MB-1

  • Efficient Heat Transfer is provided by high quality nickel chromium resistor wire wound on a select mica strip and enclosed in a die-formed aluminum coated steel sheath.
  • Long-Term Durability is assured by non-hygroscopic mica insulation.
  • Uniform Fit to ±1/16″.
  • Type A Extra Flexible Stranded Nickel Leadwire protected by means of a close-knit stainless steel braided sleeve. Standard length is 24″ with 18″ of braid.
  • Heavy Duty Stainless Steel Anti-torque Post Terminals — Standard is #10-24 threads, except for 1″ wide units which have #6-32 threads.
  • Reliable Performance and Quick Temperature Response.
  • One-Piece Construction provides maximum nozzle coverage in tight spaces.

Mica Band MB-2

  • Efficient Heat Transfer is provided by high quality nickel chromium resistor wire wound on a select mica strip and enclosed in a die-formed aluminum coated steel sheath.
  • Long-Term Durability is assured by non-hygroscopic mica insulation.
  • Uniform Fit to ± 1/16″ because of low expansion stainless steel clamping band, which assures maximum heat distribution.
  • Easy to Apply due to two-piece construction. Each heater is rated 240V. Connect in series for 480V; parallel for 240V.
  • Heavy Duty Nickel Plated Steel Post Terminals complete with hardware, are designed to prevent excess torsion during tightening of connections. Standard #10-24 threads.
  • Reliable Performance and Quick Temperature Response.

Type CB Ceramic Band Heater

  • Energy Efficient, 25% Savings
  • Radiant Heating Principle
  • Uniform Heating Pattern
  • Available in Special Configurations
  • Thermal Insulation
  • 1600°F Band Operating Temperatures
  • Flexible
  • Corrosion-Resistant Alloy Shell
  • High Temperature Resistance Wires

Mighty Tuff Mineral Insulated Band Heaters

  • Stainless Steel Sheath resists oxidation
  • Capable of up to 1200°F (760˚C) Sheath Temperatures
  • Highest possible application temperatures
  • Capable of long life at High Watt Densities
  • Thin profile (3/16”) for fast response

Aluma-Flex Band Heaters

  • Rugged, long lasting design
  • Excellent heat transfer from element to sheath and sheath to heated part
  • Temperatures to 650°F (340°C)
  • Virtually contamination proof
  • Uniform sheath temperature
  • Easy installation

DB and DBW High Density Cylindrical Strip Heaters

  • Long life heavy duty DBW industrial heater uses a 3/8 inch thick strip heater with chrome steel sheath; offers ten times the life of a mica band heater.
  • Heavy Duty-Uses type PT Chromalox strip heater.
  • Flexible One-Piece Construction for Easy Installation and Removal
  • Up to 3,250 Watts
  • Up to 1200°F Max. Sheath Temp.
  • Up to 800°F (426C) Max. Barrel Temp.
  • Third-party certifications: UL Recognized, CSA, VDE, CE

HBT Tubular Band Heaters

  • Stainless Steel Sheath resists oxidation
  • Capable of up to 1200°F (760˚C) Sheath Temperatures
  • Highest possible application temperatures
  • Capable of long life at High Watt Densities
  • Thin profile (3/16”) for fast response

Contact a Thermal Devices’ Sales Engineer for more information! Or, request a quote
