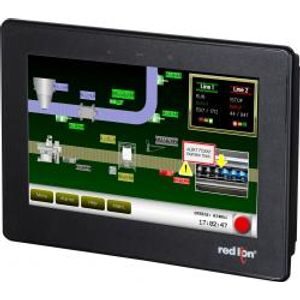

Red Lion CR1000 and CR3000 Automation HMI’s

Shop Now

Features

  • Full-color HMI touchscreen

    A variety of 4.3 in. to 15 in. models with widescreen, 16M colors

  • Industry-leading protocol conversion

    Communicate with over 300 protocols, Easily convert between serial, USB and Ethernet devices, Convert up to 6 protocols simultaneously with CR1000 and up to 15 with CR3000, Manage multi-vendor environments with ease

  • Crimson 3.1 software enables point-and-click configuration
  • Updated 3D symbols and primitives create a modern operator experience
  • Ethernet, USB and serial ports make communication simple
  • Robust web server provides remote access and control to reduce costly site visits
  • Send email and/or SMS notifications on alarm conditions
  • Built-in data logging enhances troubleshooting and helps meet regulatory requirements
  • Automate population of data values using SQL Queries feature

Summary

Thermal Devices is an authorized Red Lion distributor and is proud to offer the full line of Red Lion CR1000 and CR3000 Automation HMI’s. In a market of ever-changing customer requirements and increasing rates of innovation, having equipment that can adapt to meet these needs is important. Red Lion’s CR1000 and CR3000 automation HMIs enable integrators and system designers to cost effectively plan for future reconfiguration or feature upgrades without scrapping existing equipment.

Contact a Thermal Devices’ Sales Engineer for more information! Or, request a quote.

Product Literature

Red Lion CR1000 and CR3000 Data Sheet
Red Lion CR1000 Product Manual
Red Lion CR3000 Product Manual

Product Description

Display
The breadth of screen sizes and options available with CR1000 and CR3000 HMIs enables you to reduce risk from human error by delivering a consistent user experience across platforms.  With 16M colors and widescreen options available, train new operators faster and with greater comprehension by offering full-color visual guides to shorten downtime during changeovers or for troubleshooting common issues.

Communication
Red Lion’s protocol communication capabilities are among the most powerful in the industry. With an ever-expanding library of over 300 industrial drivers and the drag-and-drop simplicity of protocol conversion with Crimson®, the CR1000 and CR3000 HMIs ensure your equipment stays relevant and connected for years to come.

Connectivity
Added connectivity in the HMI means less burden on the system PLC, reducing complexity & cost.  The CR1000 and CR3000 HMIs have up to two (2) 10/100Base-T(X) Ethernet ports and up to four (4) serial ports.  A USB device port, standard on every model, speeds program download time versus serial connections. For those applications needing significant human input, USB host ports enable you to speed data entry by adding peripherals like keyboards, a mouse or bar code scanner to your operator process. In addition, optional modules expand the CR3000 HMI communications capabilities, removing the need for third party external communication gateways – saving time and money by simplifying the programming & installation costs.

Crimson 3.1 Software
Shorter product lifecycles mean integrators’ and OEMs’ end customers expect them to design & build or quickly retrofit highly customized machines faster than ever before.  The easy-to-use import utility in Crimson® 3.1 enables users to upgrade existing Crimson databases for these displays with a just a few clicks.

Enhanced primitives offer smoother edges and more fill options with an anti-aliased rendering for a more natural appearance.  More updated symbols & primitives mean less importing and formatting of custom elements.  And Crimson’s smart conversion utility allows developers to quickly repurpose key elements or entire databases to scale capabilities between systems.

Collection
Features like data logging and web serving enable equipment manufacturers and operations management to evaluate machine usage and operation and offer service recommendations like preventive maintenance before bigger problems arise. Data can be acquired from any or all connected devices and compiled into CSV files which can be stored, displayed, emailed or automatically synchronized with a server.

Further maximize production efficiency by tapping into upstream systems using SQL Queries. The SQL Queries feature available on our CR3000 HMIs automates the downloading of data from Microsoft SQL Server to populate values in a process.  Typical applications include recipes for batch applications, production expectations (KPIs) per shift, or to set user IDs eligible to log in to specific equipment.

Remote Monitoring and Control
The web server available on the CR3000 HMI offers a full-screen display option, mobile-responsive pages, HTTPS operation with certificate provisioning and features like HTTP redirect, CSS and Java Script support.
