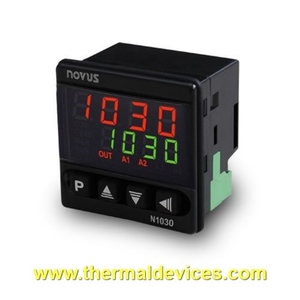

NOVUS N1030-PR Temperature Controller 8103000002 3 PACK

The NOVUS N1030-PR Temp. controller 8103000002 from Thermal Devices, an authorized NOVUS distributor. N1030 is a temperature controller that features a high performance PID algorithm in a compact housing, with only 35 mm depth. Its compact construction and the convenient detachable connector provide an easy set up on short profile panels, optimizing the space and reducing costs. It has two outputs always available which can be configured both as a control or an alarm.

Usually Ships in 3-5 Business Days

A Quantity of 1 = 3 Pieces

$188.10

SKU: 8103000002
SKU: 8103000002 Category: Tag:

NOVUS N1030-PR Temperature Controller 8103000002 3 PACK

Features of the Novus N1030 Temperature Controller:

  • Single Loop PID and ON/OFF controller
  • PID auto tuning
  • Two independent outputs available
  • Dual relay output or 1 pulse and 1 relay versions
  • Six alarm functions: LO, HI, differential, differential LO, differential HI, sensor break
  • Initial blocking alarm function
  • Adjustable alarm hysteresis
  • Thermocouples J, K, T and Pt100 input
  • Temperature unit C or F
  • Decimal place indication
  • Configurable setpoints limits
  • Password protected configuration
  • Factory configuration parameters recovery
  • Dual red and green four-digit display
  • Front panel material PC UL94 V-2
  • Enclosure material: PC UL94 V-2
  • Front panel protection: IP65
  • Operating environment: 0 to 60 C, 20 to 80 RH
  • Dimensions: 48 x 48 x 35 mm, 1/16 DIN
  • Power supply: 100 to 240 Vac/dc or 12 to 24 Vdc / 24 Vdc/ac
  • Detachable terminal block

NOVUS N1030-PR Temperature Controller 8103000002 3 PACK

Manufacturer

NOVUS

Product Line

NOVUS N1030

Output

1.5A relay and Pulse

Power

100 to 240 Vac/dc or 12 to 24 Vdc / 24 Vdc/ac

NOVUS Code Number

8103000002

Size

48×48 mm

Controller Style

Single Loop PID and ON/OFF controller

Lead Time

3-5 Business Days (Call us at 301-831-7550 for next day shipping)
