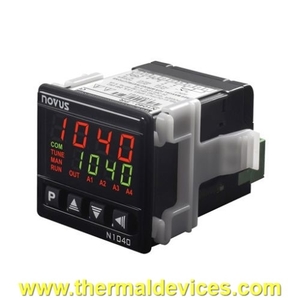

NOVUS N1040-PR USB 24V Temperature Controller 8104210014 2 PACK

The NOVUS N1040-PR USB 24V Temp. controller 8104210014 from Thermal Devices, an authorized NOVUS distributor. The microprocessor based N1040 was conceived for low cost applications and yet achieving high degree of accuracy. It features a short depth enclosure of only 70 mm thus reducing panel space considerably. Another important innovation is the exclusive removable wiring connection block which translates into ease of use during installation process. It accepts Pt100 RTDs and thermocouples types J, K and T and features two outputs for control and alarm, universal power supply and automatic tuning of the PID parameters. The N1040 is set to be the lowest cost temperature controller in the market while keeping high performance standards.

Usually Ships in 3-5 Business Days

A Quantity of 1 = 2 Pieces

$189.20

SKU: 8104210014
SKU: 8104210014 Category: Tag:

NOVUS N1040-PR USB 24V Temperature Controller 8104210014 2 PACK

Features of the Novus N1040 Temperature Controller:

  • Accepts thermocouples J, K, T and Pt100 RTD without any hardware change or recalibration
  • Auto tuning of PID parameters
  • Outputs: logic pulse (ideal for driving solid state relays) and 1 SPST relay
  • The outputs are programmable for main control or alarm
  • Alarm functions: low, high, differential, low differential, high differential, sensor break
  • Two alarm functions can be directed to one single output
  • A very efficient universal switching power supply provides high accuracy conditions even during mains voltage fluctuations
  • Safe output function allows the user to set control output conditions in case of sensor break or failure
  • LBD (Loop Break Detection) function detects failures in the control loop
  • Simplified programming menu makes operator programming very easy
  • Indelible electronic serial number with 8 digits can be accessed from the display
  • Keypad protection prevents unauthorized programming changes
  • Silicone rubber frontal keypad
  • Dimensions: 48 x 48 mm, 1/16 DIN
  • Front panel protecion: IP65

NOVUS N1040-PR USB 24V Temperature Controller 8104210014 2 PACK

Manufacturer

NOVUS

Product Line

NOVUS N1040

Output

1 SPDT relay and Pulse

Power

12 to 24 Vdc / 24 Vac / minus 10 percent, plus 20 percent

NOVUS Code Number

8104210014

Size

48×48 mm

Controller Style

Microprocessor based, auto tuning PID controller

Lead Time

3-5 Business Days (Call us at 301-831-7550 for next day shipping)
