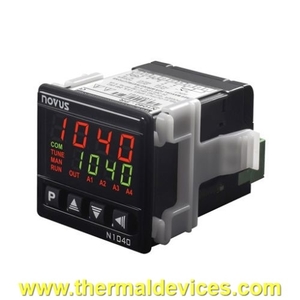

NOVUS N1040-PRRR USB RS485 Temperature Controller 8104211307

The NOVUS N1040-PRRR USB RS485 Temp. controller 8104211307 from Thermal Devices, an authorized NOVUS distributor. The microprocessor based N1040 was conceived for low cost applications and yet achieving high degree of accuracy. It features a short depth enclosure of only 70 mm thus reducing panel space considerably. Another important innovation is the exclusive removable wiring connection block which translates into ease of use during installation process. It accepts Pt100 RTDs and thermocouples types J, K and T and features two outputs for control and alarm, universal power supply and automatic tuning of the PID parameters. The N1040 is set to be the lowest cost temperature controller in the market while keeping high performance standards.

Usually Ships in 3-5 Business Days

$119.90

SKU: 8104211307

customer service

SKU: 8104211307 Category: NOVUS Temperature Controls Tag: NOVUS N1040

Description
Product Specifications

NOVUS N1040-PRRR USB RS485 Temperature Controller 8104211307

Features of the Novus N1040 Temperature Controller:

Accepts thermocouples J, K, T and Pt100 RTD without any hardware change or recalibration
Auto tuning of PID parameters
Outputs: logic pulse (ideal for driving solid state relays) and 1 SPST relay
The outputs are programmable for main control or alarm
Alarm functions: low, high, differential, low differential, high differential, sensor break
Two alarm functions can be directed to one single output
A very efficient universal switching power supply provides high accuracy conditions even during mains voltage fluctuations
Safe output function allows the user to set control output conditions in case of sensor break or failure
LBD (Loop Break Detection) function detects failures in the control loop
Simplified programming menu makes operator programming very easy
Indelible electronic serial number with 8 digits can be accessed from the display
Keypad protection prevents unauthorized programming changes
Silicone rubber frontal keypad
Dimensions: 48 x 48 mm, 1/16 DIN
Front panel protecion: IP65

NOVUS N1040-PRRR USB RS485 Temperature Controller 8104211307

Manufacturer	NOVUS
Product Line	NOVUS N1040
Output	3 relays and pulse
Power	100 to 240 Vac / 50/60 Hz and 48 to 240 Vdc / plus or minus 10 percent
NOVUS Code Number	8104211307
Size	48×48 mm
Controller Style	Microprocessor based, auto tuning PID controller
Lead Time	3-5 Business Days (Call us at 301-831-7550 for next day shipping)
