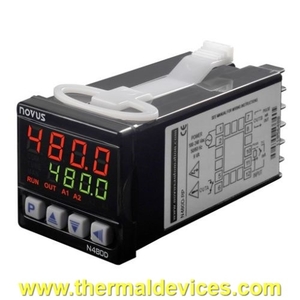

NOVUS N480D-RAR USB Temperature Controller 80480D2120

The NOVUS N480D-RAR USB Temp. controller 80480D2120 from Thermal Devices, an authorized NOVUS distributor. The N480D series of PID temperature controllers was designed for non-experienced novice users for combining extreme simplicity in operation with high performance only found in expensive high end controllers.
It is a low-cost instrument which can be easily installed and operated. It accepts most thermocoules and Pt100 RTD, features a relay and pulse output for driving solid state relays and optionally can be supplied with a linear 4 to 20 mA output. Autotunig PID function, dual display, full range universal power supply and ramps soak function are standard. It greatly surpasses the old and obsolete analog controllers in performance with ease of operation..

Usually Ships in 3-5 Business Days

$165.00

SKU: 80480D2120
customer service
SKU: 80480D2120 Category: Tag:

Product Documentation

NOVUS N480D-RAR USB Temperature Controller 80480D2120

Features of the Novus N480D Temperature Controller:

  • Accepts thermocouples type J range -50 C to 760 C, type K range -90 C to 1370 C, type T range -100 C to 400 C, type R range 0 to 1760 C, type S from 0 to 1760 C, type E range -30 a 720 C e type N range -90 a 1300 C com with cold junction compensation
  • Accepts 2 or 3-wire Pt100 RTD, range -200 C to 530 C, with cable resistance compensation
  • Pt100 excitantion current: 0.170 mA
  • Internal A/D resolution: 15,000 levels
  • Displayed resolution: 7,500 levels
  • Four-digit 10 mm red display for measured variable and four-digit 7 mm green display for setpoint
  • Sampling rate: 5 measurements per second
  • Control output update: 200 ms
  • 5 Vdc 20 mA logic control output
  • 1 SPDT relay and 2 SPST 3A at 250 Vac relays
  • Power: 100 to 240 Vac/dc, 50/60 Hz; optional 24 Vdc/ac
  • Power consumption: less than 9 VA
  • Operating environment: 0 to 55 C, 20 to 95 percent RH
  • Front panel: IP65, Polycarbonate UL94 V-2
  • Back panel: IP30, ABS and PC UL94 V-0
  • Weight: 140 g with 1 relay, 160 g with 3 relays
  • Panel cutout: 45.5 mm x 45.5 mm
  • Dimensions: 48 x 48 x 110 mm (1.89 in. x 1.89 in. x 4.33 in.)

NOVUS N480D-RAR USB Temperature Controller 80480D2120

Manufacturer

NOVUS
Product Line

NOVUS N480D
Output

2 relays and 4-20mA
Power

85 to 250 Vca, 50/60 Hz
NOVUS Code Number

80480D2120
Size

48×48 mm
Controller Style

Auto tuning PID Controller
Lead Time

3-5 Business Days (Call us at 301-831-7550 for next day shipping)
