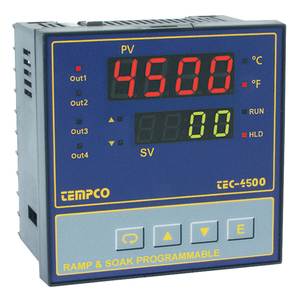

Tempco Temperature Controller TEC58001 Part Number TEC-4500-41101000

The Tempco Temperature Controller TEC58001 Part Number TEC-4500-41101000 from Thermal Devices, an authorized Tempco distributor. The full line of Tempco TEC temperature controllers are used in a wide variety of machinery to accurately maintain process temperatures. Common applications include: commercial cooking/warming, defrost equipment, extrusion machines, packaging machines, injection molding, and many more! Please refer to the product features, specifications, and literature below for more information.

Usually Ships in 3-5 Business Days

$431.66

SKU: TEC58001
SKU: TEC58001 Category: Tag:

Tempco Temperature Controller TEC58001 Part Number TEC-4500-41101000

Features of the Tempco TEC-4500 Temperature Controller:

  • Ramp & Soak Programmable Control
  • Nine recipes (profiles) available using 64 segments maximum per recipe
  • Event Input – one of 8 functions can be chosen: start run mode, hold mode, abort recipe, manual mode, failure transfer, turn off, segment advance, select 2nd set of PID parameters
  • Event Output – 3 relays are available. Can be programmed to any segment or end of recipe
  • Analog Retransmission – optional mA or VDC transfer of PV or SV values
  • Highly accurate universal input with 18 bit analog to digital converter
  • Bright 0.40″ (10mm) red LED process display
  • Fast sample rate – 200ms
  • Fuzzy logic autotune PID – 2 sets of values can be used
  • Optional RS-485 or RS-232 communications interface
  • Programming port available for PC connection allowing quick set-up
  • Lockout protection guards against unauthorized setting changes
  • Bumpless transfer allows continued temperature control if sensor fails
  • Universal input power – 90-250 VAC or 11-26 VAC/VDC
  • Short panel depth required

Tempco Temperature Controller TEC58001 Part Number TEC-4500-41101000

Manufacturer

Tempco

Product Line

Tempco TEC-4500 Temperature Controller

Signal Input

Input 1 – Universal, T/C type J, RTD, 0-60 mV

Output 1

Relay – 2A/240 Vac

Output 2/Alarm 1

No/Relay – 2A/240 Vac

Hardware Code

TEC-4500-41101000

Lead Time

3-5 Business Days (Call us at 301-831-7550 for next day shipping)
